EMIX EMSQ‑8022 6 Channel Power Sequencer with 210V AC Sockets (EMSQ8022)

EMIX EMSQ‑8022 6 Channel Power Sequencer with 210V AC Sockets (EMSQ8022)

EMSQ-8022 is designed to prevent high current surge while switching ON all the equipment at the same time. In operation, the sequential switcher will switch ON equipment one by one in ascending order and switche OFF the equipment in descending order. The interval ON/OFF time can adjust from 1 to 120 seconds. Immediate pause and resume is possible during switching. Manually select to switch on specific equipment is possible. There is a remote trigger port for

Specifications :

• Power Requirement : 240V AC
• Power Consumption : 100mA at 240V AC (Standby)
• Output Voltage : 240V AC
• Total Load : 5A at 240V AC
• Output Connectors : 6 unit British Standard Switch Socket

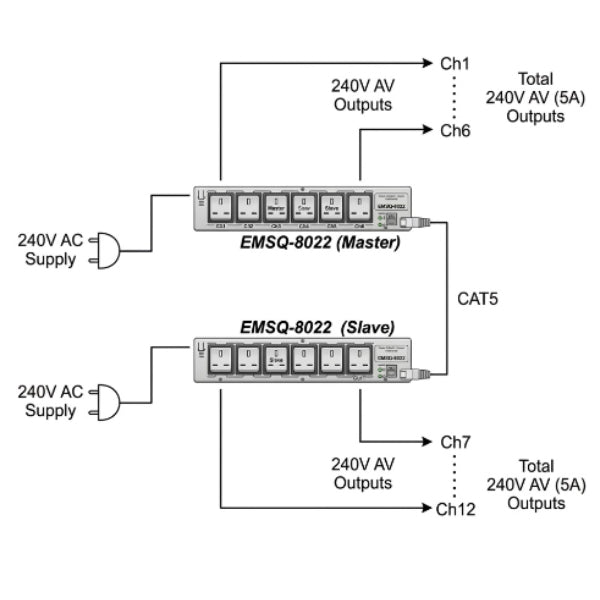

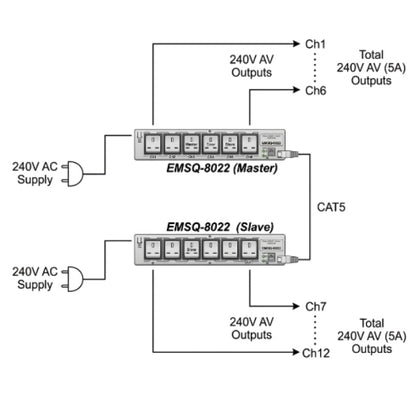

• Cascade : 10 units (EMSQ-8022), total 60 Channels
• External Triggering : Yes
• Interval Delay Time : 1 to 120 seconds
• Protection : Internal Fuse for Overload & Short Circuit Protection
• Display : 2x16 characters LCD to display device status
• Dimension : 49 cm x 5 cm x 24 cm (1U)
• Weight : 4.85 kg

Features :

• 6 channels British standard 240V AC sockets
• Cascade up to 10 units to a total of 60 channels
• Adjustable interval ON/OFF from 1 to 120 seconds
• Single button to start power ON sequence 1,2,3,4,5,6
• Single button to start power OFF sequence 6,5,4,3,2,1
• Immediate pause & resume is possible during switching
• Manually select specific equipment to switch ON/OFF/SKIP
• Internal fuse for overload & short circuit protection
• 2x16 character LCD to display ON/OFF status
• Microchip controller to simplify settings
• All switches ON/OFF/SKIP status are store in memory
• Built-in remote external trigger port
• Twin RJ-45 ports easy cascade linking
